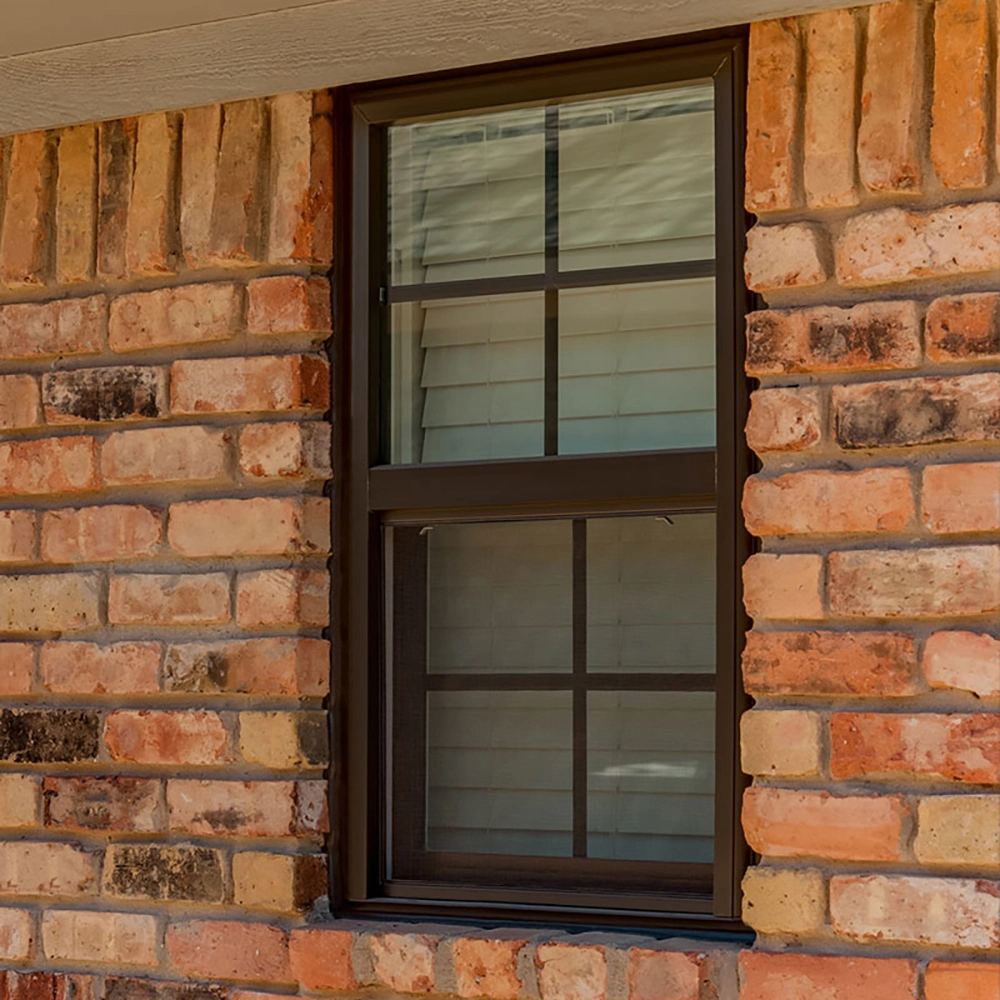

Factory American Slide up Window Vertical Sliding Single/Double Hung Windows
In addition, the wraparound design of the frame and panel completely eliminates the risk of the window panel falling out, significantly enhancing the safety factor. According to the ventilation requirements, the positions of the upper and lower window panels can be flexibly adjusted. It is worth mentioning that due to its unique opening method, the installation of the screen window becomes simple and easy, and it is also conducive to escape in emergency situations.
Lead Time: 20-30days
Payment Term: T/T
Why Choose vertical hung sliding Windows?
● American-style sliding Windows are also divided into single panel hung and double panel hung sliding types.
● The single panel hung window is ingeniously designed, with one fixed window and the other panel movable. This design not only enhances air tightness and water tightness but also reduces costs.
● Double panel hung sliding Windows offer more flexible ventilation options, while making it convenient to clean the glass indoors and easy to disassemble and maintain.
● The hardware of American-style sliding Windows also adopts an advanced roll plate design, combined with an inward tilting function, which enables them to easily stay at any position and automatically position themselves when lifted. This not only brings great convenience to cleaning and hygiene but also facilitates ventilation on rainy days.
Design Option
The surface finished color using fluorocarbon spray color, color process is natural and bright ,can maintain 30 years.
The surface finished color using fluorocarbon spray color, color precess is natural and bright ,can maintain 30 years.
The material of the hardware is made of high-quality stainless steel, and the handle and hinge are China famous brand. For the balancer is patent.
Glass are available with a variety of glass options. From insulating and tempered glass to sound control glass, craft glass and so on, we offer several options to meet your needs.
Glass are available with a variety of glass options. From insulating and tempered glass to sound control glass, craft glass and so on, we offer several options to meet your needs.
With high-transparency screens, you can increase the amount of natural light and airflow in your home.
The screens are a great choice for your home to prevent mosquito and thief.
Grilles between the glass create the classic look of individual window panels, we can offers many grille patterns to help enhance your home's architectural style.
The variety of window functions and the intelligent performance of the product make your experience more intense and increase the possibility of use.
In order to ensure the safety of the transportation of goods, as well as considering the cost of transportation, we will provide the most suitable packaging method according to the different transportation modes of customers
In order to ensure the safety of the transportation of goods, as well as considering the cost of transportation, we will provide the most suitable packaging method according to the different transportation modes of customers
Our designers will provide different opening designs to customers based on site conditions and client's requirements.
Product Details
Precisely counterweight according to the window size
Accessories are an important part of a window. We will select suitable accessories based on the size of the window to ensure its safety performance, The imported roll-type lifting accessories equipped make the lifting process both easy and durable.
The two sides of the movable panel are equipped with special balancers and limiters. The limiters' clips are clamped into the inner groove of the window frame, restricting the panel from moving vertically only. By opening the clips, the sash can be tilted inward, which is convenient for cleaning
The vertical sliding window adopts an American-style combined pull-out balancer, making the lifting and holding of the window panels light and smooth. In addition, the material structure of its window panel is compact and multiple sealing wool grooves are set around it, providing an equally excellent sealing effect. Similarly, the window panel can be freely flipped inward, which is convenient for cleaning and maintenance.
The hardware of the American-style vertical sliding window adopts limit device clips, combined with the inward tilting function, which enables it to easily stay at any position and automatically position itself when lifted
The outdoor side of the window frame is also equipped with a fixed aluminum alloy mesh with a pull ring, which is easy to install and remove. At the same time, the mesh also has the functions of dust prevention and theft prevention.
The window-shaped concave handle design not only makes it convenient to lift but also ensures the safety of use
The material structure of the vertical sliding window is compact and small. Moreover, multiple sealing wool strip grooves are set around it, further enhancing its sealing effect.
Product Parameters
|
Material |
Aluminum，glass |
|
Standard glass |
5mm+12A+5mm double tempered glass |
|
Thermal insulation strip |
PA66 glass fiber reinforced nylon heat insulation strip |
|
Standard Hardware |
Standard with China brand hardware |
|
Profile thickness |
1.4mm |
|
Frame width |
83mm |
